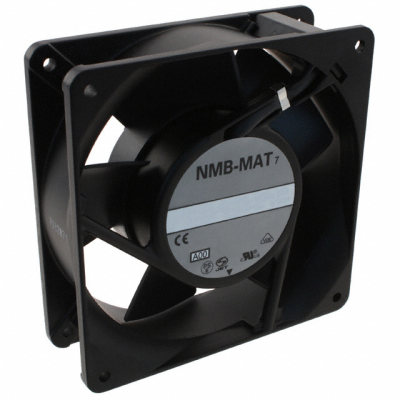

4715HS-12T-B5A-A00
| Manufacturer: | NMB Technologies Corporation |
In Stock 84 pcs
|
|
|---|---|---|---|
| Datasheet: | 4715HS-12T-B5A-A00 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119X38MM 115VAC TERM | $15.85 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 44.0 dB
- Width
- 38.00mm
- Series
- 11938SB
- Weight
- 1.3 lbs (589.7 g)
- Air Flow
- 105.9 CFM (2.97m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, UL, VDE
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 15.50W
- Voltage Range
- -
- Static Pressure
- 0.400 in H2O (99.6 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.025A
- Operating Temperature
- 14 ~ 149°F (-10 ~ 65°C)
