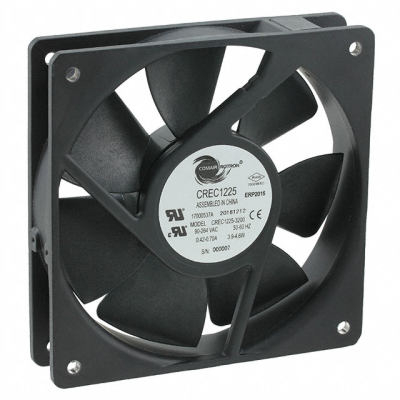

17000537A
Manufacturer: | Comair Rotron |
In Stock 101 pcs
|
|
---|---|---|---|
Datasheet: | 17000537A | ||
Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
Description: | CR1225EC-3200 | $38.01 |
Fill out the below form and we will contact you as soon as possible.
Product Parameter
- RPM
- 3200 RPM
- Noise
- 47.0 dB(A)
- Width
- 25.00mm
- Series
- -
- Weight
- 0.498 lb (225.89 g)
- Air Flow
- 92.0 CFM (2.58m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Electronic Commutation (EC)
- Approvals
- CE, cUL, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 5.50W
- Voltage Range
- 90 ~ 264VAC
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Voltage - Rated
- 100 ~ 240VAC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Magnesium Alloy
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.700A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
