Lanka Micro

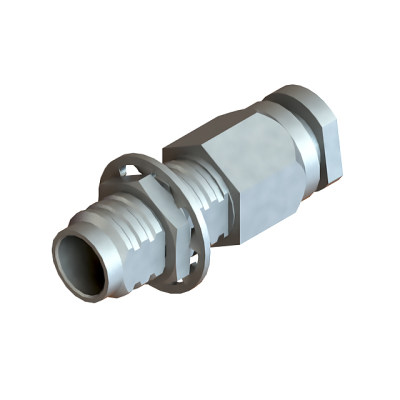

SF3321-60007
| Manufacturer: | Amphenol SV Microwave |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SF3321-60007 | ||
| Product Category: | Coaxial Connectors (RF) | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN 1.85MM JCK STR 50OHM SOLDER | $146.57 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Features
- -
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Impedance
- 50Ohm
- Packaging
- Bag
- Body Finish
- -
- Cable Group
- RG-405 (.085" Semi Rigid)
- Part Status
- Active
- Body Material
- Stainless Steel
- Housing Color
- Silver
- Mating Cycles
- 500
- Mounting Type
- Panel Mount
- Connector Type
- Jack, Female Socket
- Fastening Type
- Threaded
- Insertion Loss
- -
- Connector Style
- 1.85mm
- Frequency - Max
- 65GHz
- Number of Ports
- 1
- Mounting Feature
- Bulkhead - Front Side Nut
- Ingress Protection
- -
- Shield Termination
- Solder
- Contact Termination
- Solder
- Dielectric Material
- Polychlorotrifluoroethylene (PCTFE)
- Operating Temperature
- -55°C ~ 125°C
- Center Contact Plating
- Gold
- Center Contact Material
- Beryllium Copper
